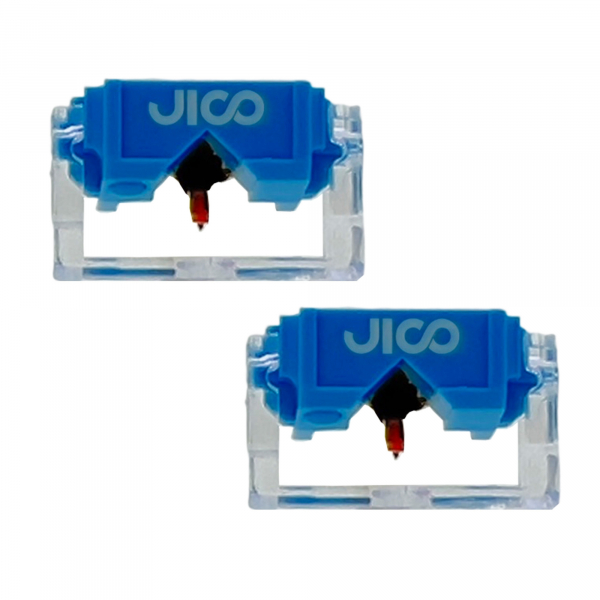

JICO N-44-7 DJ IMP SD replacement needle, 1 pair

In stock
Delivery Time
None Europe: DHL EXPRESS: 3-8 days

Replacement needle for Jico J44A-7 system, 1 pair
Replica also suitable for Shure M447
Recommended use: Scratching and beat juggling with control vinyls
SD (synthetic uncoated diamond)
Needle cut: Spherical
Output voltage 5.0-8.0mV
Color of the replacement needle: Blue
Transmission range: 20 Hz - 20,000 Hz
Contact area: 3.5~4.5g
Made in Japan

The Japanese-made N44-7 DJ SD stylus is crisp and clear in the higher frequencies. At the same time with strong bass, powerful and pronounced, it rounds off a lively, powerful and dynamic sound image. This stylus is perfect for scratching and beat juggling applications, e.g. with control vinyls. JICO "SD" styli are made entirely of synthetic diamonds. Synthetic diamonds (SD) are artificially produced diamonds that have the same chemical composition, crystal structure, optical/physical properties and hardness as natural diamonds (ND). Natural diamonds vary in hardness due to their natural formation, while synthetic diamonds offer the advantage of consistent hardness. The shape of the SD points is conical. Their guaranteed playback time has been set at 200 hours.

The JICO N-44 7 DJ SD replacement stylus is suitable for the JICO J44A-7 system and as a replica also suitable for the Shure M447 pickup system.

Technical data:

Color of the replacement needle: Blue
Output voltage (1kHz, 5 cm/sec): 8mV
Recommended load: 47 kΩ
Support range: 3.5~4.5g
Transmission range: 20 Hz - 20,000Hz
Channel balance: 1.5 or less
Channel separation (1kHz): 20db
Direct current resistance: 800Ω
Conformity: L8.5 / V8.5
Needle carrier (cantilever): JICO type S
Needle ground joint: Spherical
Tip size: 0.7mm
Application: Scratching and beat juggling with control vinyls
Height: 35 mm
Weight: 16 g
