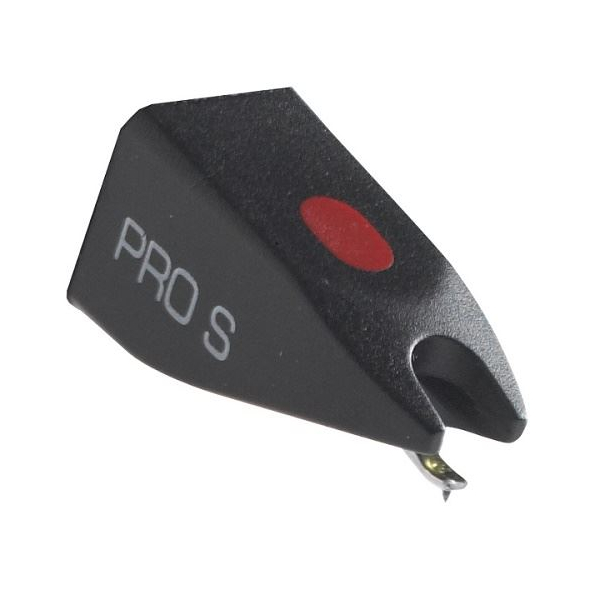

Ortofon Pro S Replacement stylus

Delivery Time: Germany 1-2 days / Economy International 4-12 days / Express Worldwide: 1 Day in EU and 3-5 days rest of the world

€24.00
Incl. 19% Tax, excl. Shipping Cost

Quick Overview


The Pro S entry-level cartridge is perfect for newcomers on the DJ scene who want to start  off with decent, but not too expensive equipment.

-OR-

OR
  Manufacturer
Ortofon

Details

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

The sound quality is absolutely not to worry about.

The Pro S is a consistent performer and a fine all-arounder!

Pro S Stylus Technical data

Output voltage at 1000Hz, 5cm/sec.  -  5 mV
Channel balance at 1kHz  -  2 dB
Channel separation at 1kHz  -  20 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at -3dB  -  20-18.000 Hz
Frequency response   -  20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommmende tracking force  -  70 μm
Compliance, dynamic lateral  -  7 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm

Tracking force range  -  3.0-5.0 g (30-50 mN)
Tracking force recommended  -  4.0 g (40 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  750 Ohm
Internal inductance  -  450 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde / OM cartridge weight  -  18.5 g / 5.0 g

Compatible with cartridges - OM Pro S

Additional Information

Manufacturer Ortofon
Color Black
Delivery content 1 x Ortofon Pro S Replacement stylus
Delivery Time Germany 1-2 days / Economy International 4-12 days / Express Worldwide: 1 Day in EU and 3-5 days rest of the world
