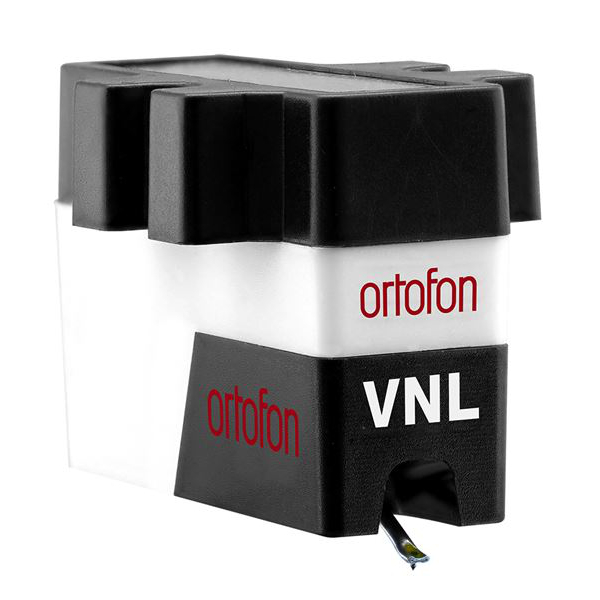

Ortofon VNL Cartridge
VNL technical data
Stylus Type: Spherical
Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel separation at 1kHz - 20 dB
Frequency response 20 Hz - 20 kHz -2/+4 dB
Tracking ability at 315 Hz at recommended tracking force:
VNL I 100 μm
VNL II 90 μm (deliveryconten)
VNL III 90 μm
Compliance, dynamic lateral:
VNL I 16 μm/m N
VNL II 15 μm/m N (deliveryconten)
VNL III 14 μm/m N
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge weight - 6,5 g
Replacement stylus units: VNL I, VNL II, VNL III
Antiskating: for best backcueing performance use “0”

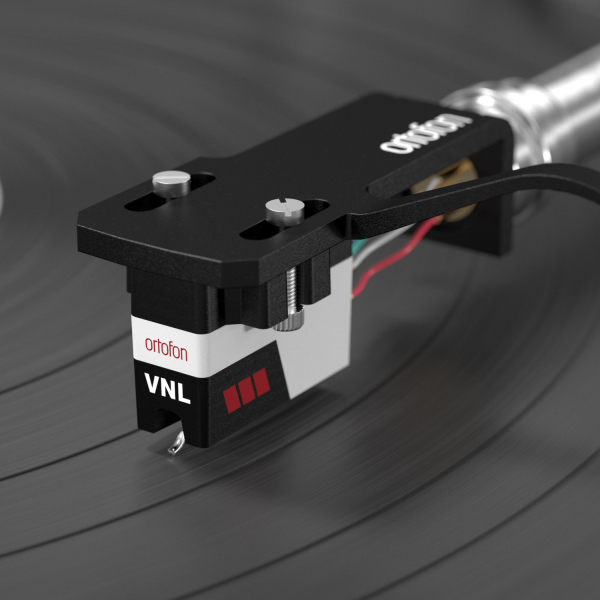

The Headshell shown on the product pictures is not included.
The new VNL features and improvements
Extra resistance to hardcore scratching and back spinning
High tracking performance for both DVS usage and real vinyl
Optimal balance of output and of sound quality
Technological improvements have been applied for the benefits of all users:
Ultrasonic welding of the components ensures high rigidity and freedom from resonances.
Robotic assembly of stylus assembly offers high precision and uniformity of industrial production.
The VNL Package includes
VNL II compliance, dynamic lateral 15 μm/m N - Rigid
