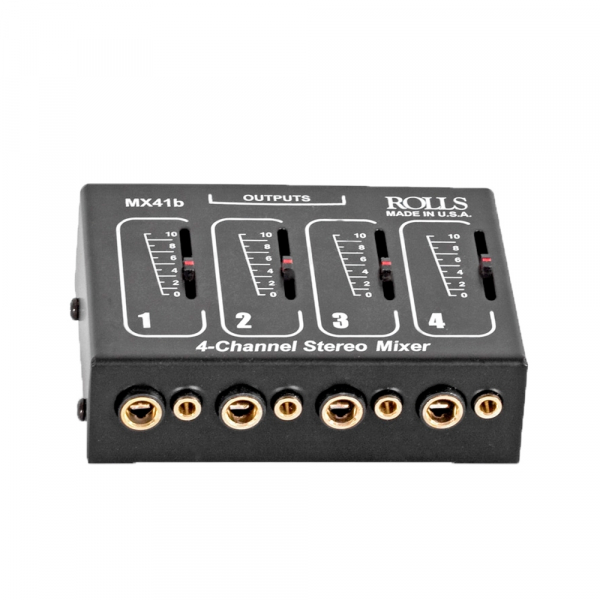

Rolls MX41b Mini-Mixer

The Rolls MX-41b is a passive mini mixer and ideal for mixing audio line sources (RCA). The mixer can also be used in "reverse" mode for the passive distribution of a stereo signal to 4 stereo inputs.

Features: Mixing of 4 stereo signals Stereo outputs Separate levels for each channel 3.5 and 6.3 mm jacks

Features

4-channel passive mini mixer
4x stereo input (6,3-/3,5mm jack)
Output (6.3-/3.5mm stereo jack)
4 separate slide controls (line signal)

Technical Specifications

Input impedance
10...47 kΩ
Output impedance
2.5 ... 10 kΩ
Amplification (Gain)
-12 dB (max.)
Weight
253 g
Dimensions
9.5 x 7 x 3.7 cm (W x H x D)

Download: Data Sheet
