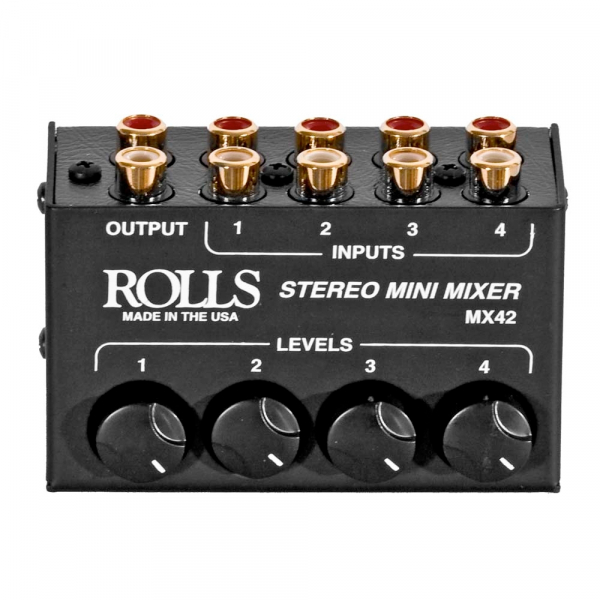

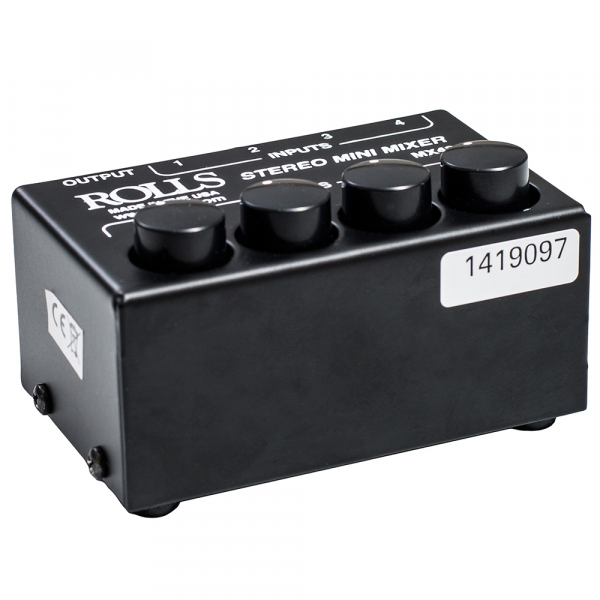

Rolls MX42 Mini-Mixer

The Rolls MX42 is a passive mixer and ideal for mixing audio line sources (RCA). The mixer can also be used in "reverse" mode for the passive distribution of a stereo signal to 4 stereo inputs.

Features: Mini Mixer, passive 4 inputs (Cinch) 1 stereo output (Cinch) Separate levels for each channel

Features

4-channel passive stereo mini mixer

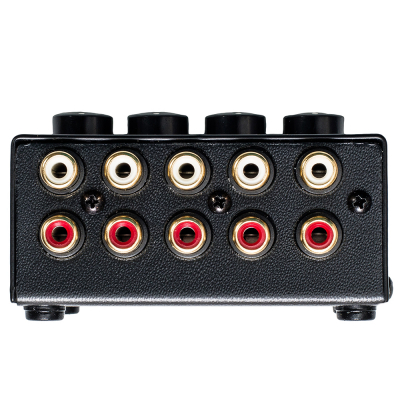

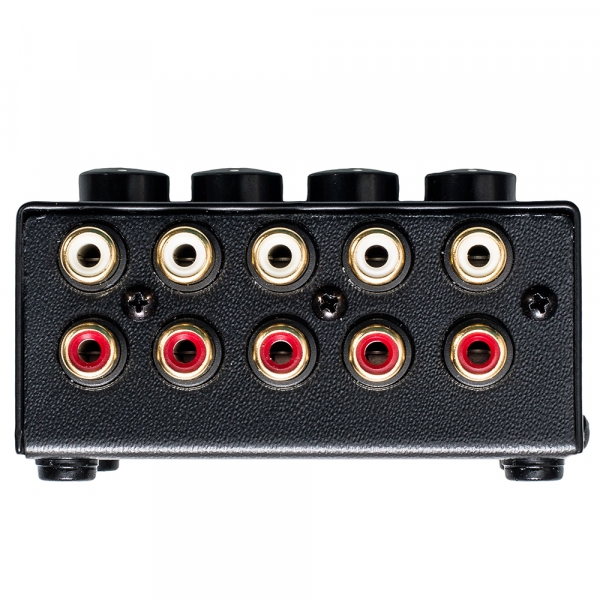

4 Stereo inputs (Cinch)
1 Stereo output (Cinch)
Can also be used as 1 to 4 stereo distributors
Separate level controls per channel
passive mixer for operation without power supply
ideal for portable DJing or fast splitting of line signals
Compact and light (only 500g)
Dimensions: 7.6 x 5 x 3.6 cm

Technical Specifications

Input channels
4 Stereo
Output channels
1 stereo
Connectors
Cinch
Input impedance
10...47 kΩ
Output impedance
2.5...10 kΩ
Maximum gain
-12 dB
Dimensions
7.6 x 5 x 3.6 cm (W x H x D)
Weight
0,5 kg

Download: Data Sheet
